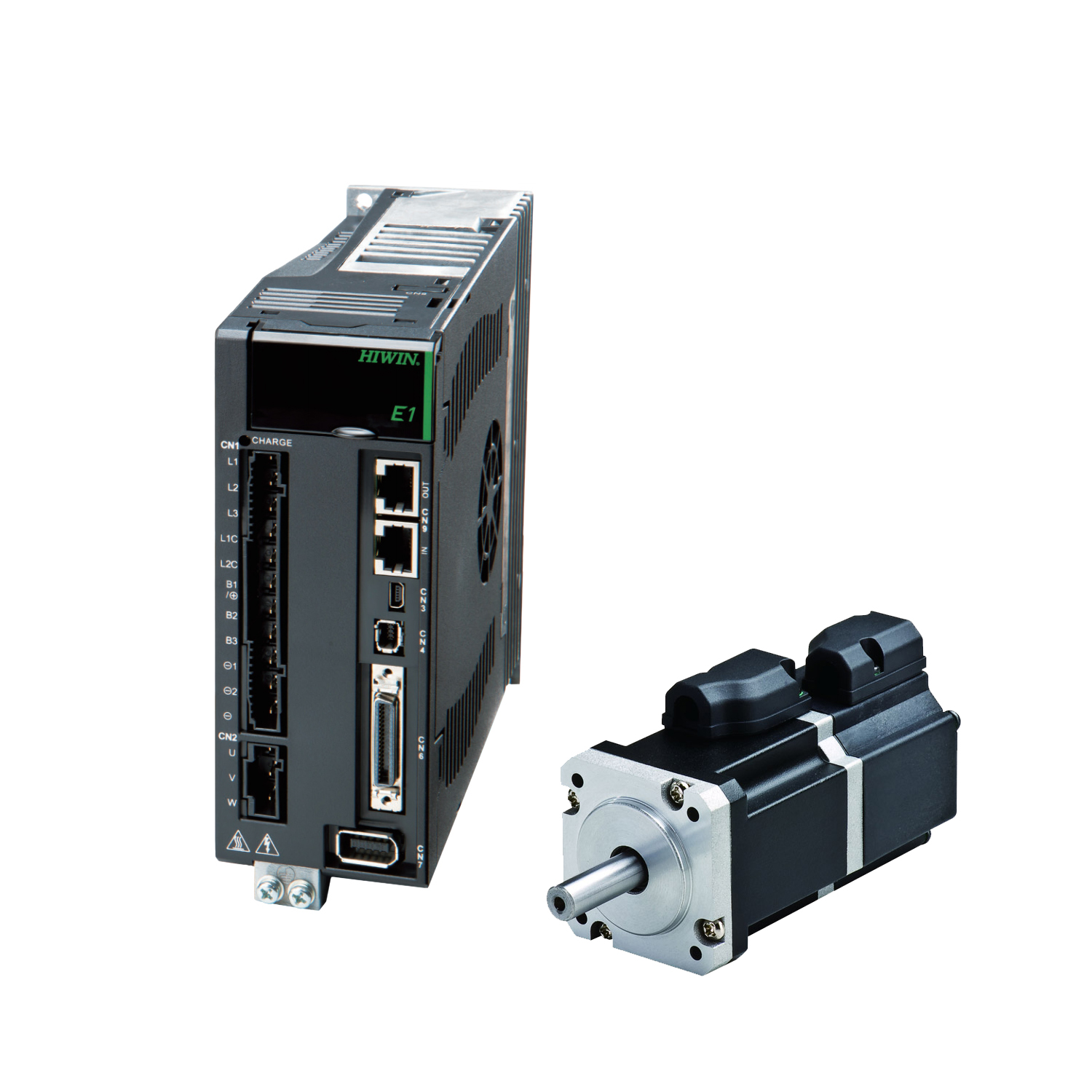

Hiwin’s flagship E1 series of ac servo motors are designed to provide users with their choice of rated outputs ranging from 200 W to 2 KW. AC servos of all wattages can be configured with different rated speeds (low, standard, high), motor shaft options that include a keyway and/or oil seal, a brake option for vertical applications and 23-bit incremental or absolute encoder options.
Wattages are also selectable among inertias (low and middle), capacities (small and middle) and three speeds (low, standard and high-speed). Control bandwidth allows for precise positioning. Based on the model selected, speeds ranging from 2,000 to 6,000 rpm can be achieved. Providing control of the servo motors are Hiwin’s E1 series ac servo drives. The E1 series ac servo drives support a wide variety of motors and multiple encoder types. Among the features included are: 3.2 kHz speed response, both tuneless and advanced auto-tune functions, ripple compensation, unique gantry application, network connectivity and built-in safe torque off (STO).
