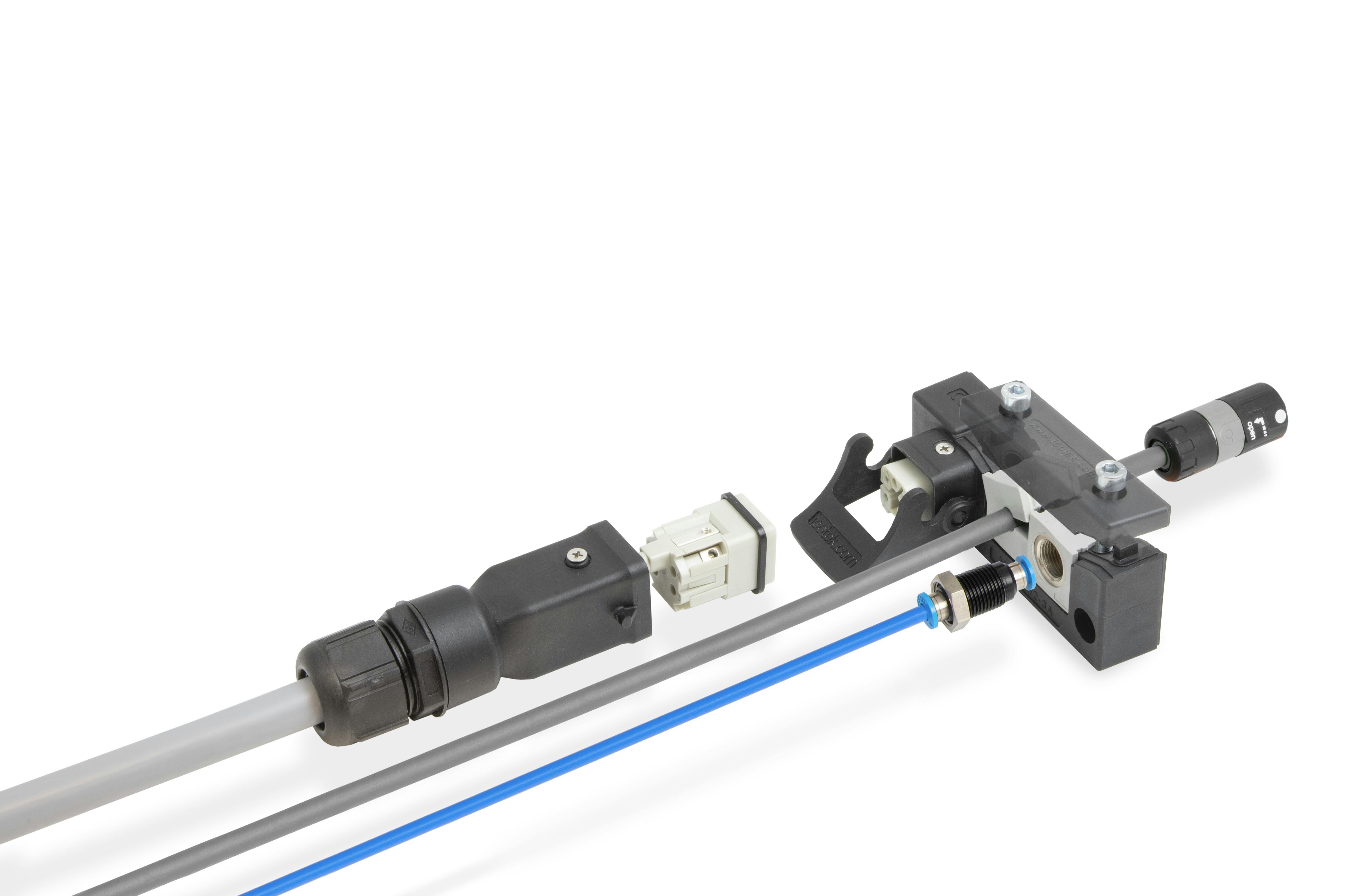

icotek Modular Interface System

Feb. 12, 2025
The Modular Interface System (MIS) from icotek is designed to connect cable management and industrial connectors.

The Modular Interface System (MIS) from icotek is designed to connect cable management and industrial connectors. The system combines a split cable entry with the option of integrating 3-A or 4-A connectors directly into the frame. Suitable for this are 3-A and 4-A inserts from icotek and many other manufacturers. The cable entry is designed to enable the entry, sealing and strain relief of cables with and without connectors, with cable diameters from 1 to 15 mm, in accordance with DIN EN 62444. 3A or 4A industrial connectors are plugged directly onto the frame. The complete system consists of a frame with add-on housing for the socket insert, a cover, two screws and a locking element. The set also includes the counterpart, a housing for 3-A/4-A pin insert and a cable gland (M20 for 6-12 mm or M25 for 13-18 mm). The frame is CE-compliant and compatible with numerous manufacturers.

Icotek / www.icotek.com
