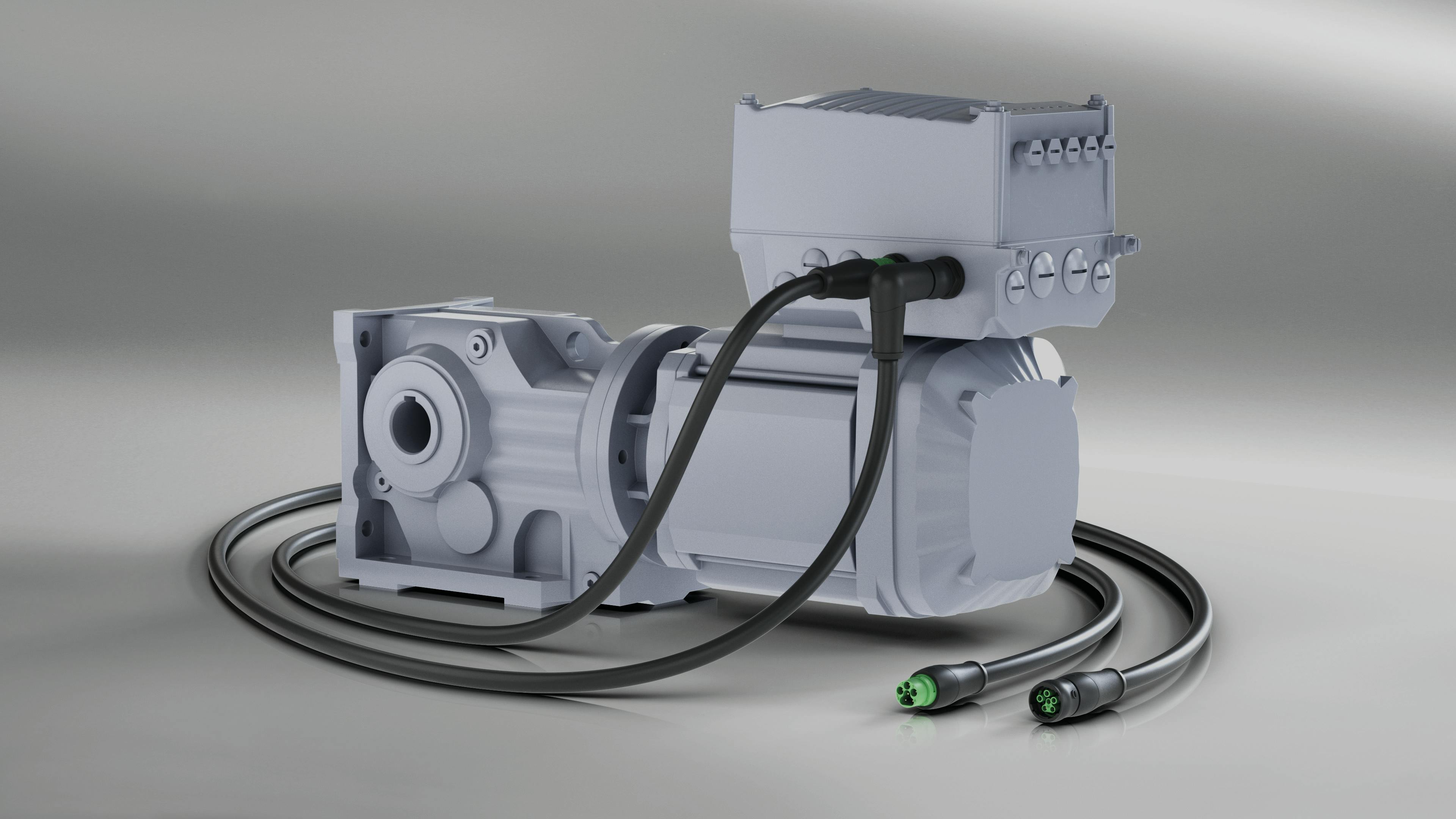

The MQ15 is a connector designed to provide a secure connection for asynchronous and three-phase motors up to 7.5 kW. It is available in two versions: a 48 Vdc/20 A Type 2 version and a 600 Vdc/16 A Type 3 version, both equipped with a quarter-turn locking mechanism. This IP67-rated and UL-listed product features cables with options for drag-chain compatibility, high flexibility, flame-retardant properties, and oil/chemical resistance in PUR and TPE jackets, or chemical-resistant PVC jackets. The MQ15 portfolio also includes "h-couplers" for connection to multiple motors, "T-couplers" for daisy-chaining and field-wirable installation accessories. With MQ15 receptacles, motors can be converted to plug-and-play. Motor integration is possible via the M20x1.5 thread.
Murrelektronik / www.murrelektronik.com
