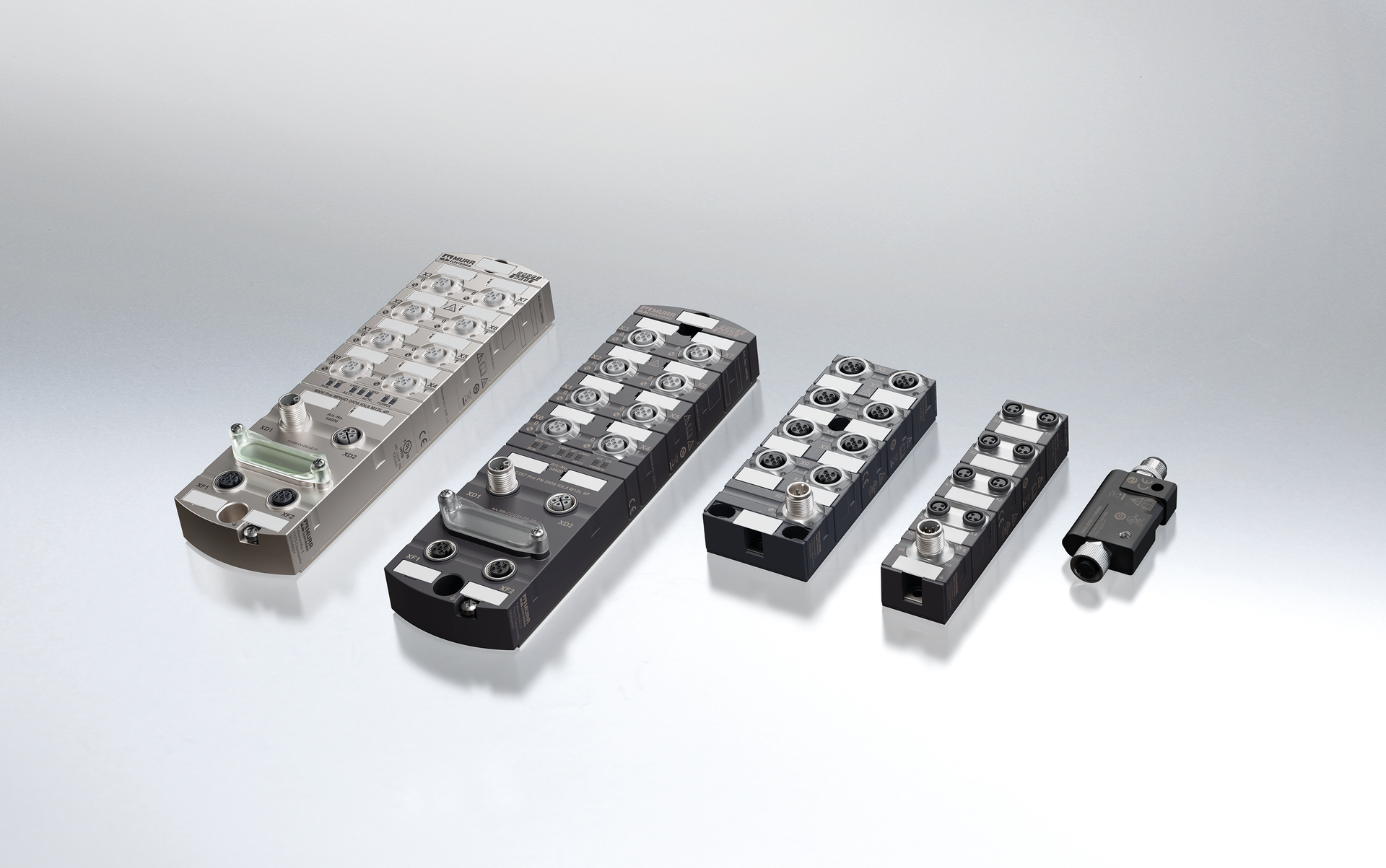

Murrelektronik MVK Pro and IMPACT67 Pro are part of Murrelektronik’s collection of IO-Link master modules. Available for the Profinet, Ethernet/IP and EtherCAT protocols, each is equipped with eight multifunctional Class A/B IO-Link master ports allowing one module to serve as your choice of 16 DI, 16 DIO, 16 DO, 8 IOL. The two L-coded M12 ports in four- or five-pole options allow for daisy-chaining and provide up to 2 x 16 A power. By taking full advantage of IO-Link capabilities, these blocks are designed to get the needed input and output data from your machines and systems. Add in IO-Link hubs and analog converters, and you can connect digital and analog signals to this IO-Link master using a standard sensor cable. T Pro modules also provide secondary extended diagnostic data (voltage, current and temperature values) for both the respective ports and the entire module. This allows anomalies to be detected and the actual process to be optimized via data analysis. With the help of OPC UA, this can be done completely without a controller using a standard protocol.
Murrelektronik / www.murrinc.com
