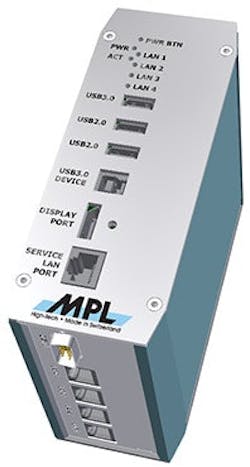

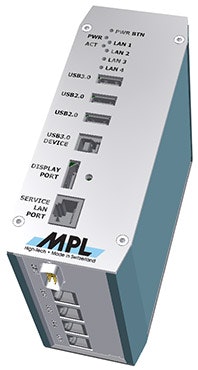

CEC is a highly integrated, compact and robust embedded computer system, based on the Intel Atom Processor E3800 Series with single-, dual-, and quad-core CPUs. The unit operates in a wide supply range of 8-36 V without a fan, heat pipes or case openings. The CEC has a low power consumption of 8-18 W, and it offers a configurable power management feature to provide sleep currents down to 100 µA, supporting wake-up sources such as an ignition signal, RS232 ring indicator, or wake-on LAN. The CEC operates in a temperature range of -40°C to 85°C, and withstands reverse polarity voltage, overvoltage, surge and burst voltages, as well as electromagnetic discharges.Â
