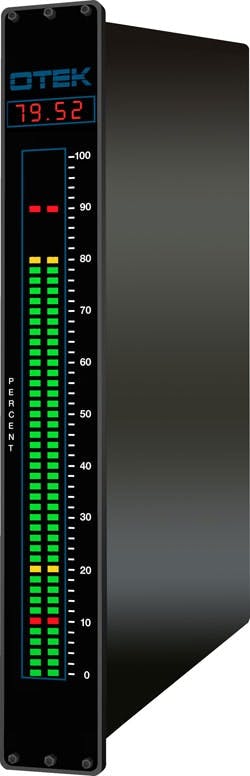

Otek Corporation's HI-Q114 digital panel meter is a direct form, fit and function replacement for analog meters that is designed with boiler drum level indication in mind. Standing edgewise at 11.35 inches, the HI-Q114 carries an interchangeable faceplate and bar graph that can be customized to display watts, volts, amps, RPM and percent.
The bar graph also includes a dual 51 segment 8-inch automatic tricolor display, with four full digits and up to three analog input channels. Includes math functions, options for relays and alarm outputs, analog outputs of 4-20mA & 1-5VDC, accuracy/linearity at ± 0.01% of full scale, resolution at ± 0.002% of full scale, I/O communications of isolated USB, RS232/RS485 and ethernet upon request, power options of 5VDC, 10-32VDC, 90-265VAC and a power threshold of 3 watts.
It can meet Mil-Spec codes 461, 167, 901 and 810, while meeting nuclear grades to 10CFR50 Appendix B, IEEE std and the inherent specifications of 344, 323, 7-4.3.2, EPRI, 102323 rev.4, and NUREG 0700 & 0800.
