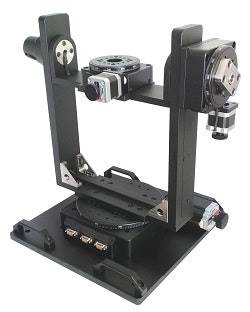

Optimal Engineering Systems Three-axis gimbal mount

The AU300-AER three-axis gimbal mount features full 360° rotation of each axis. It handles loads to 10 kg (22.5 lbs) and has a clearance of 300 mm x 300 mm (11.8 in x 11.8 in) around the roll axis stage. The azimuth stage rotary table is mounted on a 360 mm (14.173 in) x 360 mm (14.173 in) x 13 mm (0.512 in) plate with handles and has predrilled accessible mounting holes for easy integration into new or existing applications and for increased stability. The azimuth, elevation and roll axes are driven by bi-directional stepper motors capable of microstepping and have knobs for manual adjustments.
