Wieland Electric Push-in inserts for rectangular connectors

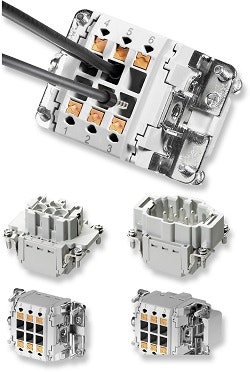

These multipole push-in contact inserts for the revos Basic series of rectangular connectors are rated for up to 600 V and 13 A. The inserts provide no-tool connections in harsh-environment applications and are available in six-, 10-, 16- and 24-pole configurations. Designed to accommodate solid wires, the inserts use spring technology to provide a gas-tight, vibration-proof connection for 14-AWG conductors. Featuring test points for all contacts, even when the conductor is inserted, they mount securely into the connector housings and feature rugged, silver-plated copper-alloy contacts rated for 500+ mating cycles. Operating temperature for the series spans -40 to 120 °C.
