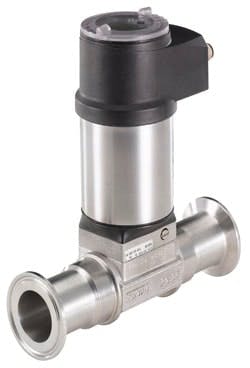

Burkert Fluid Control Systems Element Type 8036 Transmitter

Element Type 8036 transmitter for flow rates in solid-free liquids has a sensor with paddlewheel and an enclosure with cover containing the electronic module and a removable display, all attached to a compact, quarter-turn fitting. The transmitter can operate independently of the display, which is required solely for programming to set parameters, restore default parameters, program information to be displayed, access codes, adjust 4-20 mA outputs, and view measured and processed data. For orifice sizes ¼ to 2½-in., the operating range is 5 to 212 °F. Maximum pressure is 232 psi.
