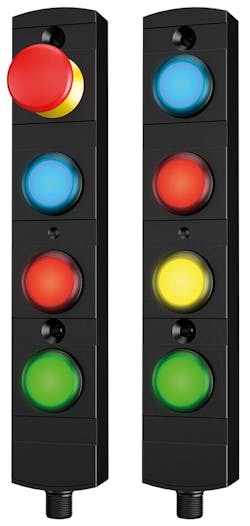

Schmersal’s BDF40 machine control panel offer up to four operators for various machine or process controls located at the guard door in one compact housing. The BDF series is designed to eliminate the need for larger custom control boxes to be designed and manufactured for guard door controls. It is designed to be mounted to standard guarding profile systems (40mm / 1.5 inch profile). The thermoplastic housing is IP65-rated to withstand normal dusty and humid industrial environments. The BDF40 slim line design matches the AZM40 solenoid interlock, so with a range of accessories and connecting parts, the BDF40 can be integrated with the AZM40 into unified door lock and control system. Two base models are available, with or without an e-stop. The remaining buttons on the control panel can be field customized to pushbuttons or illuminated pushbuttons in various colors, by the application of button caps in 11 colors. Available with two NC contacts for the e-stop (position 1) and 1 NO contact for all pushbutton positions. It also features a plug-and-play M12, 12-pin connector.
Schmersal / www.schmersalusa.com
