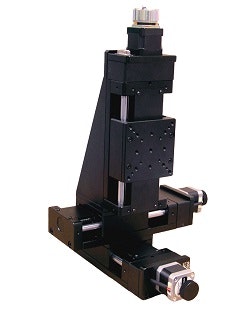

Optimal Engineering Systems Precision XYZ-axis stages

This series of high-precision XYZ positioning stages can be integrated into new and existing applications. They are offered in five travel lengths for each axis: 50 mm (1.969 in), 100 mm (3.937 in), 150 mm (5.906 in), 200 mm (7.874 in) and 300 mm (11.811 in). Any combination of lengths, motors and lead screws is available. The two-phase stepper motors are standard with a knob for manual adjustment. The knob can be replaced with an incremental quadrature encoder for position verification. An optional three-phase brushless servo motor with optical encoder also is offered for closed-loop operation and higher operating speeds.
