Telemecanique Ultrasonic sensors for mobile equipment and material handling

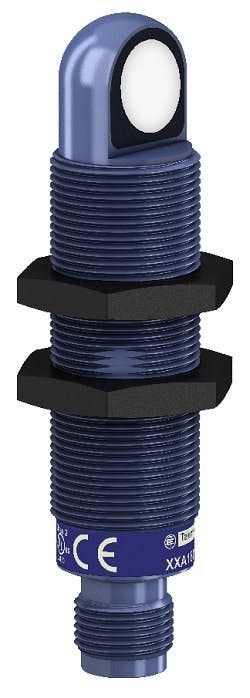

The OsiSense XX ultrasonic sensor has a detection range of up to 1,000 mm, is available in a straight or 90° head M18 cylindrical format and is E2-certified. Its tilt angle and high sensitivity help to detect challenging targets, even those previously troublesome to ultrasonic technology. A synchronization feature enables multiple sensors to be installed close to one another without the risk of cross talk, enlarging the overall detection area. Configuration software is available with an easy-to-use graphic interface that allows users to install, maintain and perform soft adaptations on the sensor quickly and efficiently.
